Fireplace boiler insert

AQUAFLAM&nbsp 17

AQUAFLAM fireplace boiler inserts from HS Flamingo have many above-standard features. The primary benefit of these innovative features is that they simplify the operation of the stove. Only the finest materials are used in their production.

secondary combustion

Ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air

firebrick-free technology

due to the absence of a firebrick lining, there is a larger surface area for increased water heating efficiency

safety cooling loop

A safety feature against overheating

Eko-Air-In - External air inlet

This innovative feature delivers high efficiency, up to a 40% reduction in fuel consumption

dual air wash of glass

Dual air wash of glass using preheated air

To ensure the safety of our customers, we have equipped these fireplace boiler inserts with a cooling loop as standard as well as basic and automated regulation, which provide further heating safety.

For example, thanks to the emergency overheating shut-off damper and the permanently open tertiary air inlet, which prevents gas from building up in the combustion chamber, AQUAFLAM fireplace boiler inserts meet the strictest European standards – BImSchV – Stufe 2, DINplus, Flamme Verte.

FIRESIDE COVER OF AQUAFLAM INSERTS

Play Video

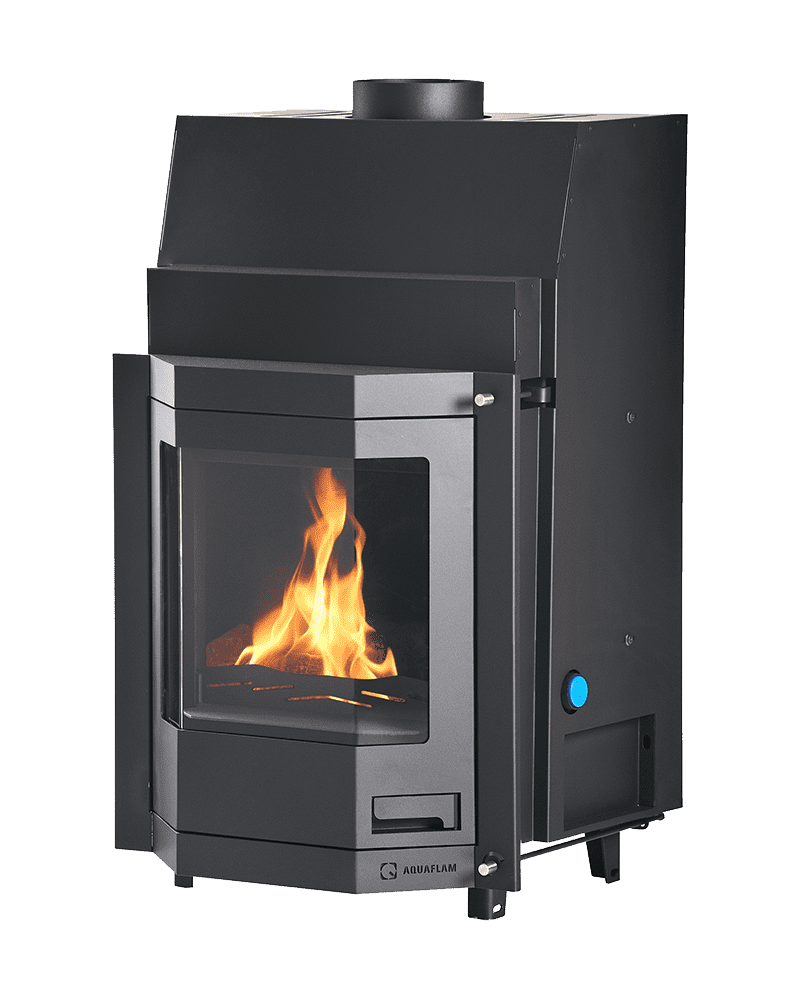

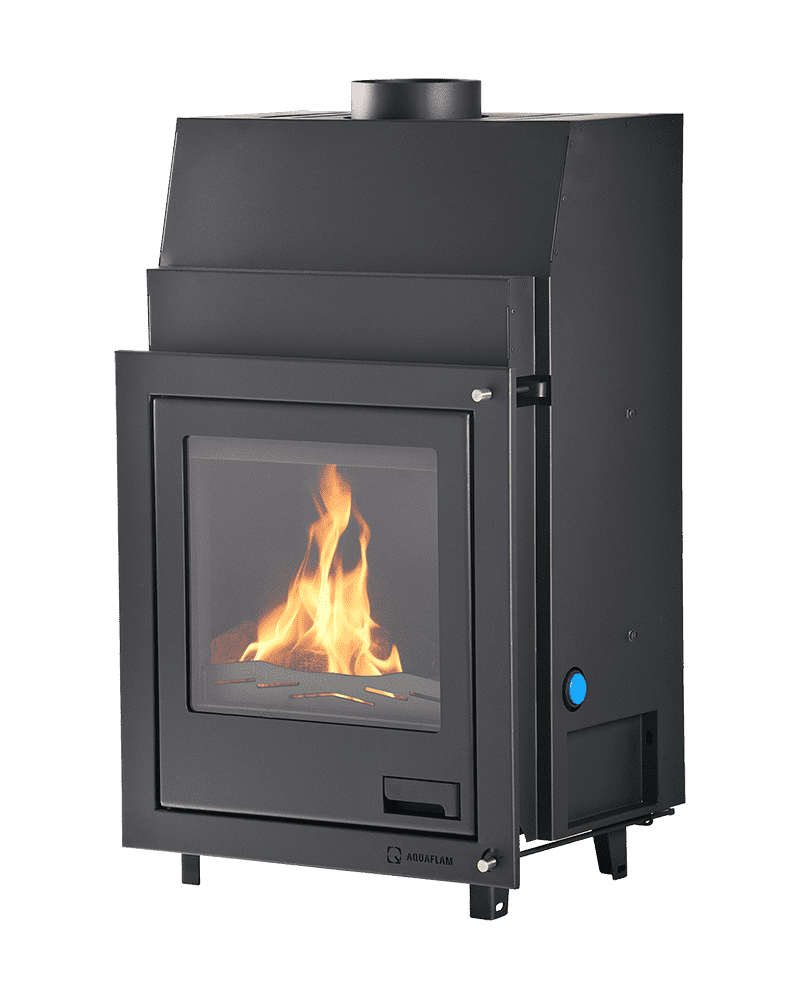

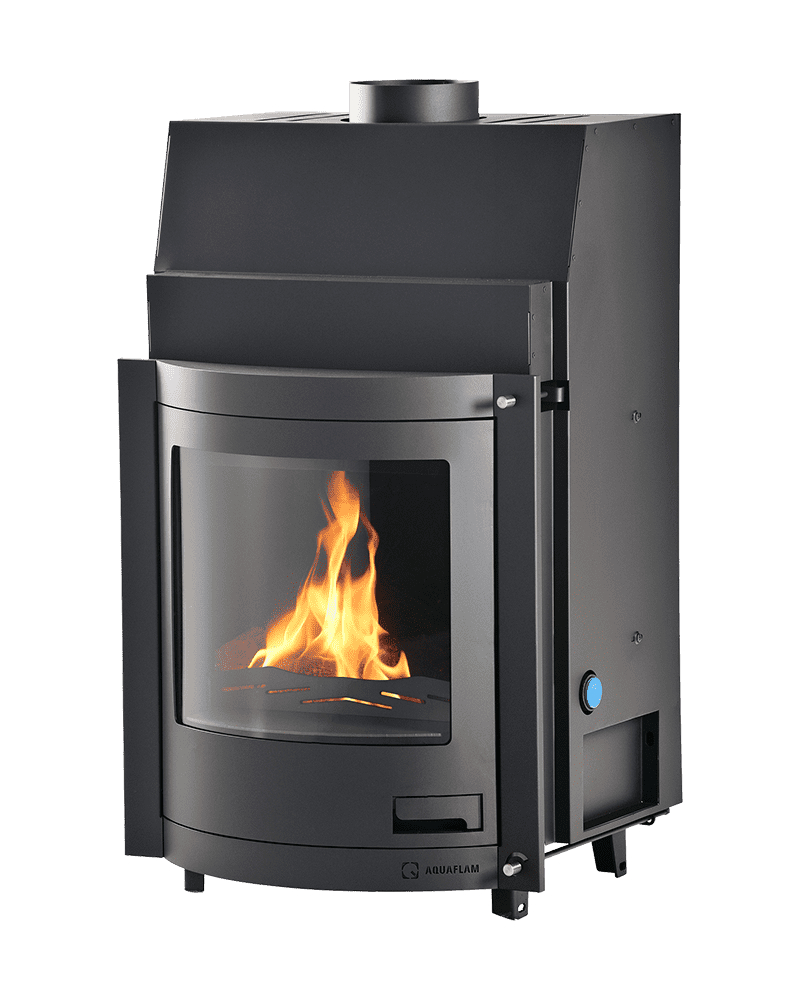

TYPES OF GLASS

Modern look with three types of glass

Secondary combustion – ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air / Dual air wash using preheated air / Firebrick-free technology – due to the absence of a firebrick lining, there is a larger surface area for increased water heating efficiency / Cooling Loop – a safety feature against overheating / External air inlet – Eko-Air-In System damper for regulating the chimney draught / Hot and cold water outlets on both sides / Three types of regulation – manual, basic electronic and automated / Three types of glass – panoramic, prismatic, flat

CROSS SECTION OF THE COMBUSTION CHAMBER

TECHNICAL PARAMETERS

Aquaflam 17
Flat
Panoramic
Prismatic
Nominal power [kW]
17
17
17
Nominal power into water [kW]
14
14
14
Nominal power range [kW]
13 – 21
13 – 21
13 – 21
Power into water range [kW]
12 – 16
12 – 16
12 – 16
Stove efficiency [%]
79
79
79
Smoke flue diameter [mm]
180
180
180
Weight [kg]
141
151
151
Log lenght [cm]
45
45
45
Heating value [m3/h]
260–420
260–420
260–420
CO emissions at 13% O2 [%]
0,1
0,1
0,1
Average flue gas temperature [°C]
255
255
255
Volume of heat exchanger [l]
32
32
32
Maximum operating pressure [bar]
2,5
2,5
2,5
We meet the standards: EN 13240, BlmSchV,
Stufe 2, Ekodesign
Yes
Yes
Yes
Warranty
5 years
5 years
5 years

Czech Product - Gold medal

Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.

COMBUSTION CONTROL

Combustion Control - Manual

  • operates without electricity
  • controlled using a rod
  • for those who prefer the classic style
  • pull towards you to open the air inlet

Combustion Control - Basic

  • simple to control directly on the insert
  • can be connected to the mains with an external AC 230V/DC6V power supply (Product code: HSF17-196), eliminating the need to use and then replace 4 AA-LR6 batteries
  • safety sensor that closes the damper in the event of overheating
  • powered by long-life batteries
  • overheating warning sound

Combustion Control - Automated

  • simple user interface
  • graphical display of sensors, pumps and temperatures
  • easy installation and connection
  • control of other heat sources
  • control up to three pumps
  • summer / winter heating modes

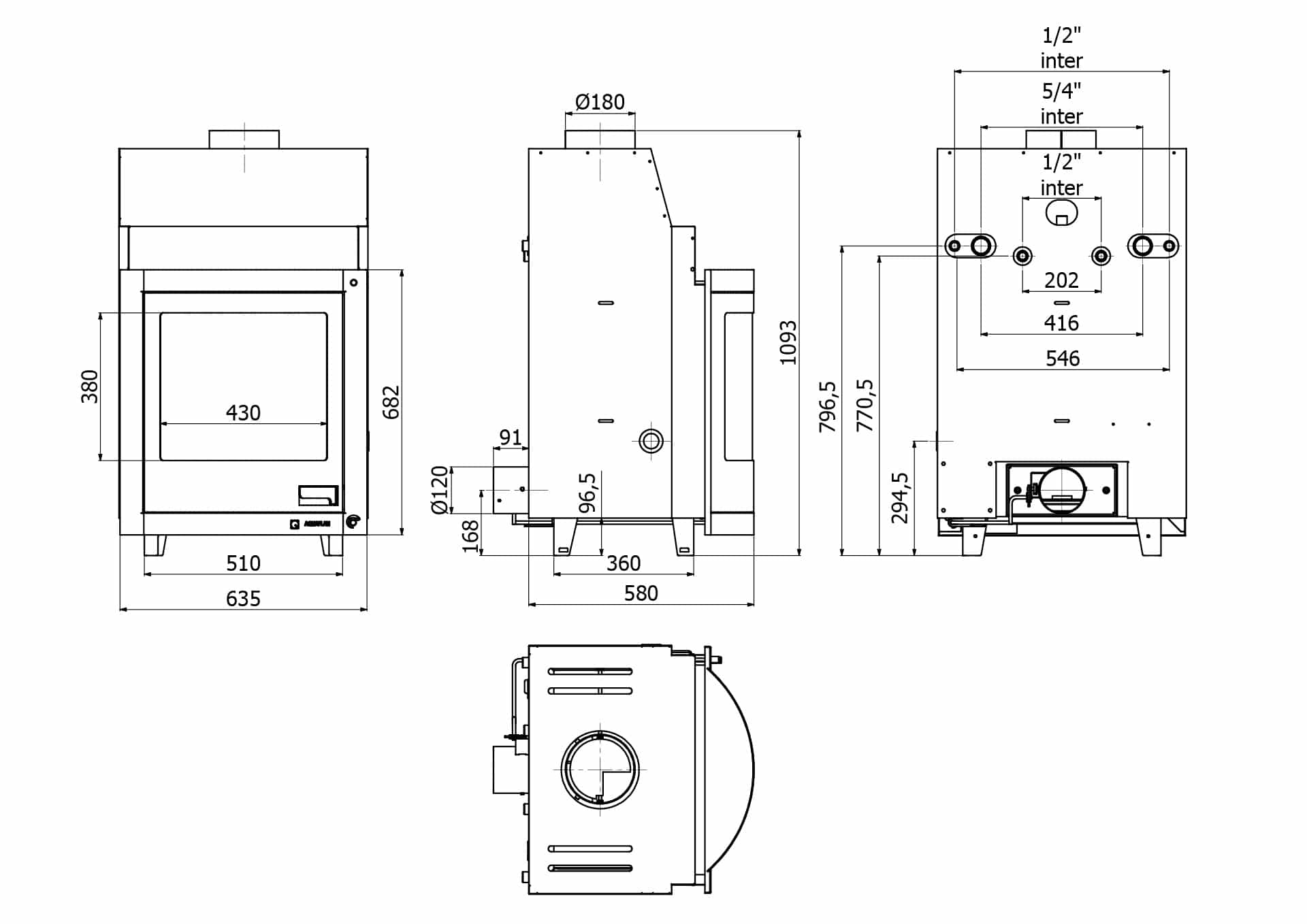

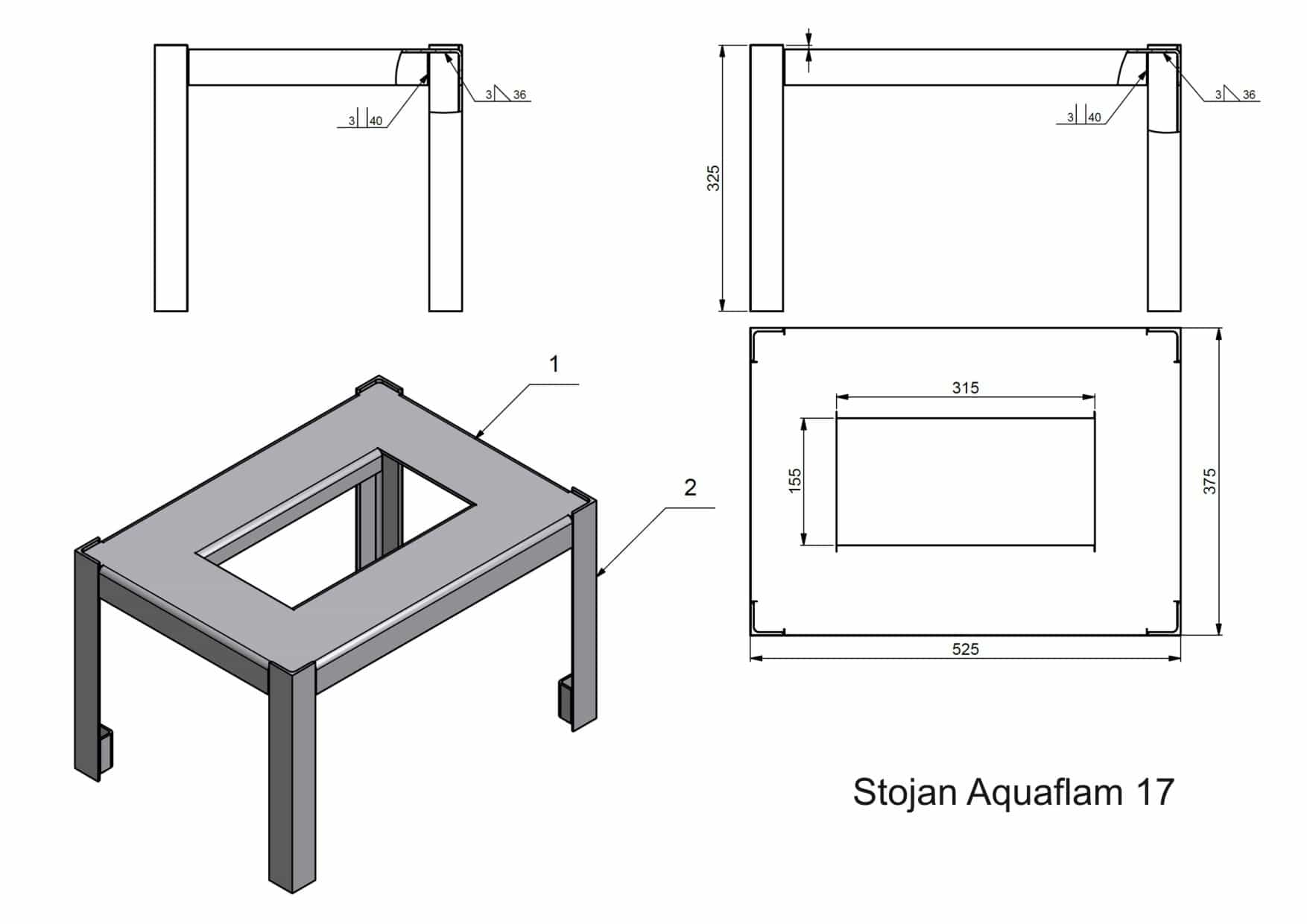

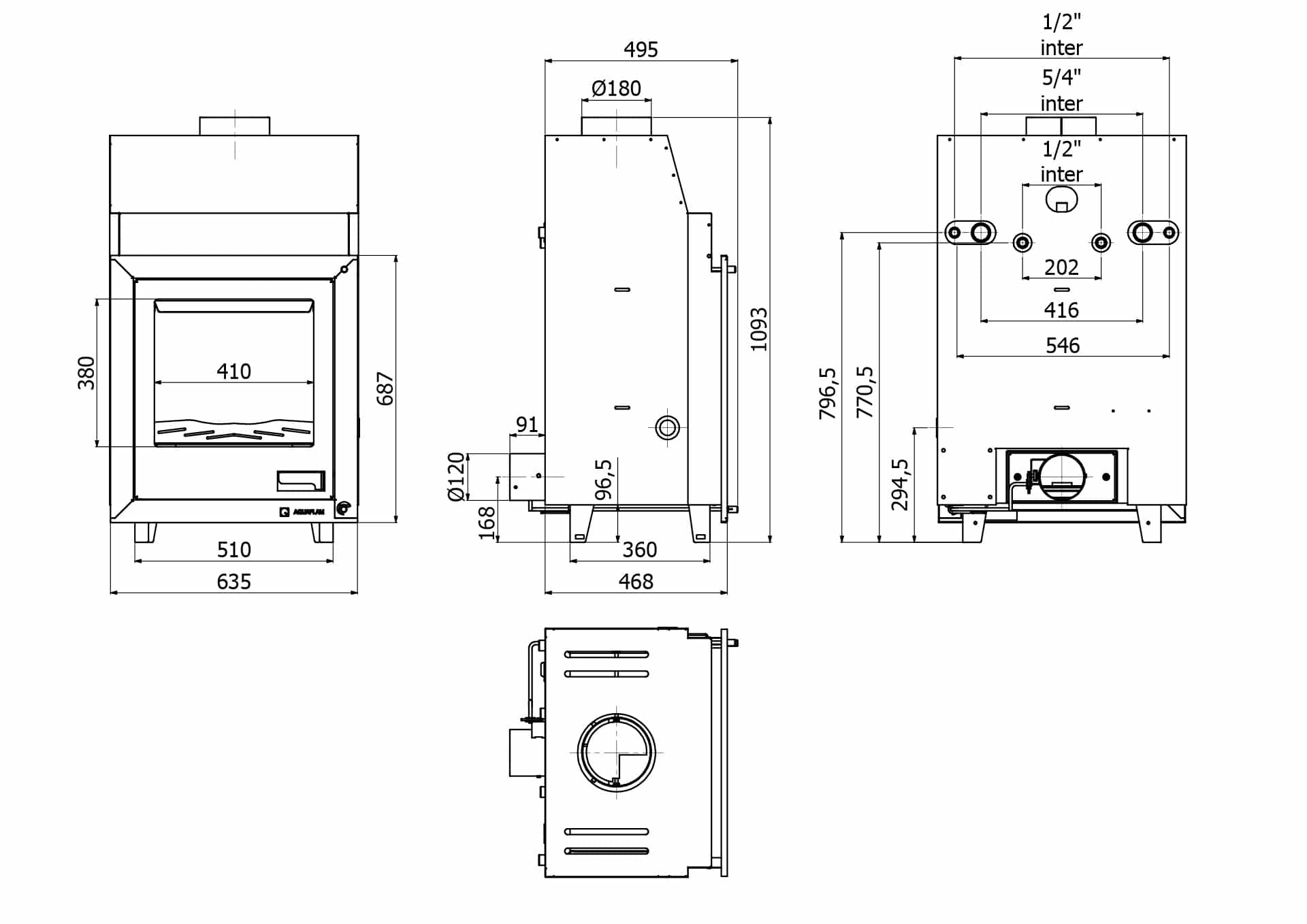

DRAWINGS & DETAILS
