Wood Boiler Stove

AQUAFLAM  17

AQUAFLAM wood boiler stoves from HS Flamingo have many above-standard features. The primary benefit of these innovative features is that they simplify the operation of the stove. Only the finest materials are used in their production. Dual air wash of glass using preheated air. Four colour options for each model

secondary combustion

Ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air

firebrick-free technology

due to the absence of a firebrick lining, there is a larger surface area for increased water heating efficiency

safety cooling loop

A safety feature against overheating

Eko-Air-In - External air inlet

This innovative feature delivers high efficiency, up to a 40% reduction in fuel consumption

convection wood stove

even better heat delivery to a room

To ensure the safety of our customers, we have equipped these boiler stoves with a cooling loop. You can select from three types of regulation (manual, basic and automated).

An outside air inlet, secondary combustion and dual window air wash are features found on all of our stoves. AQUAFLAME boiler stoves meet the strictest European standards – BImSchV – Stufe 2, DINplus, Flamme Verte.

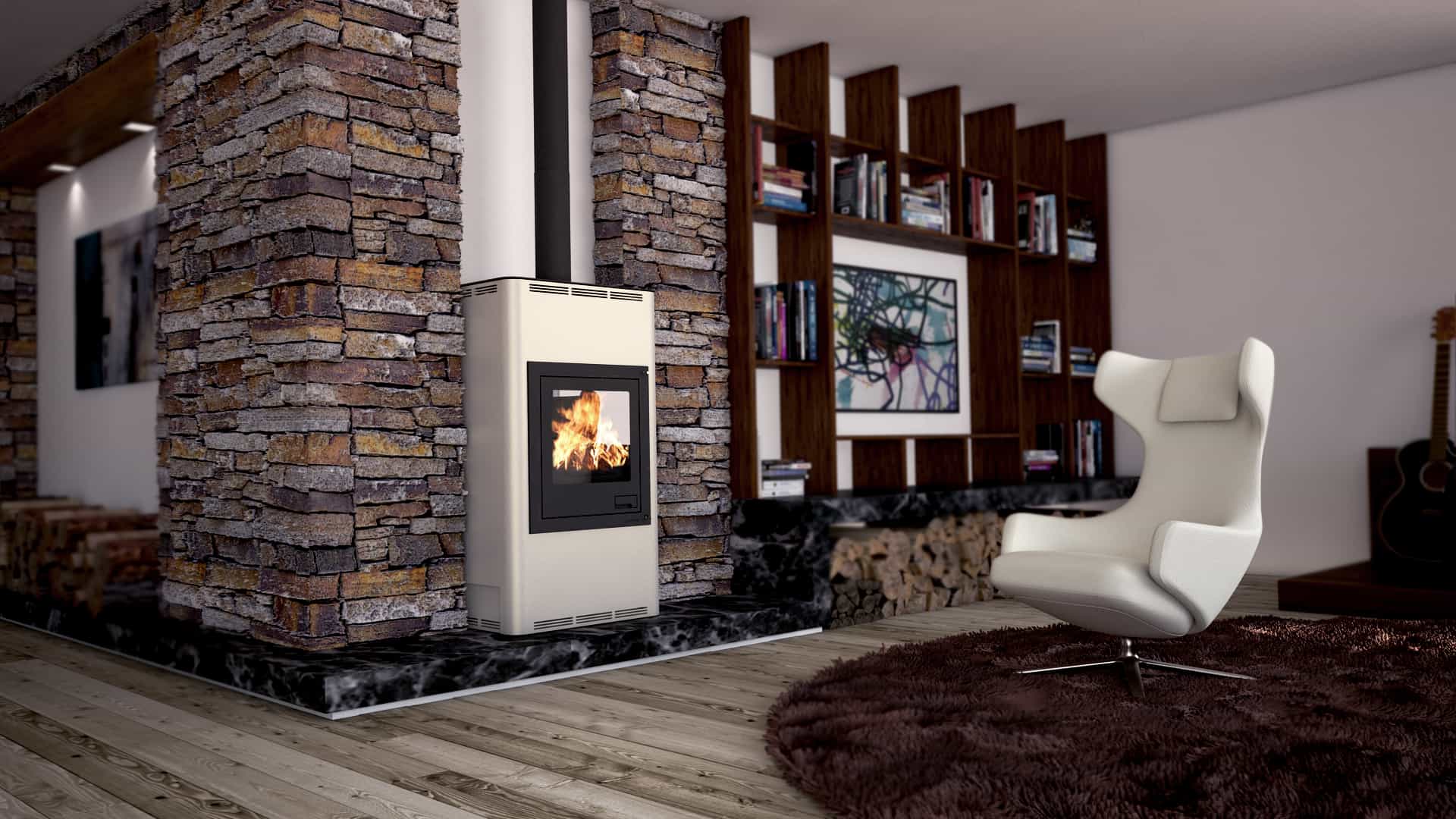

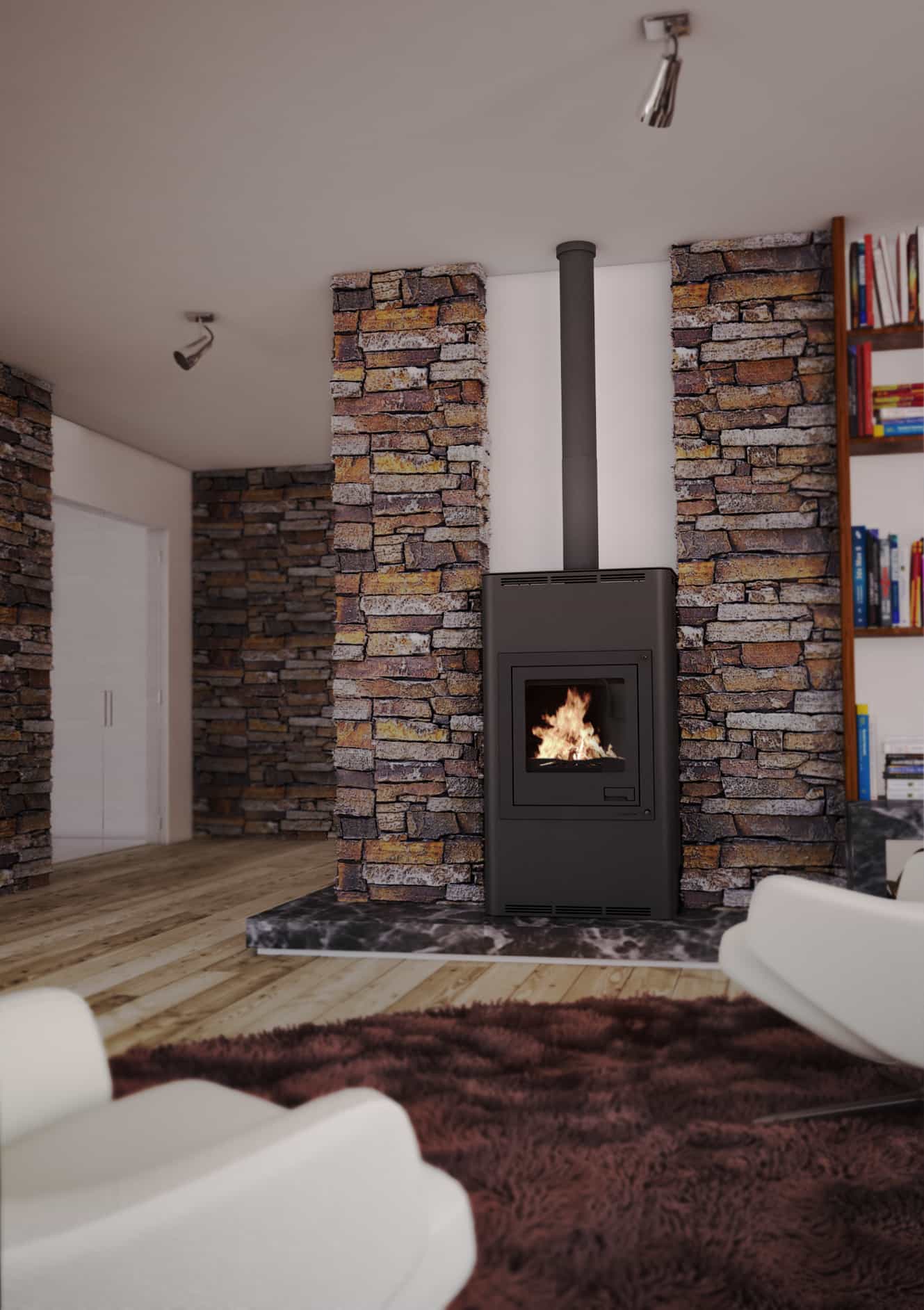

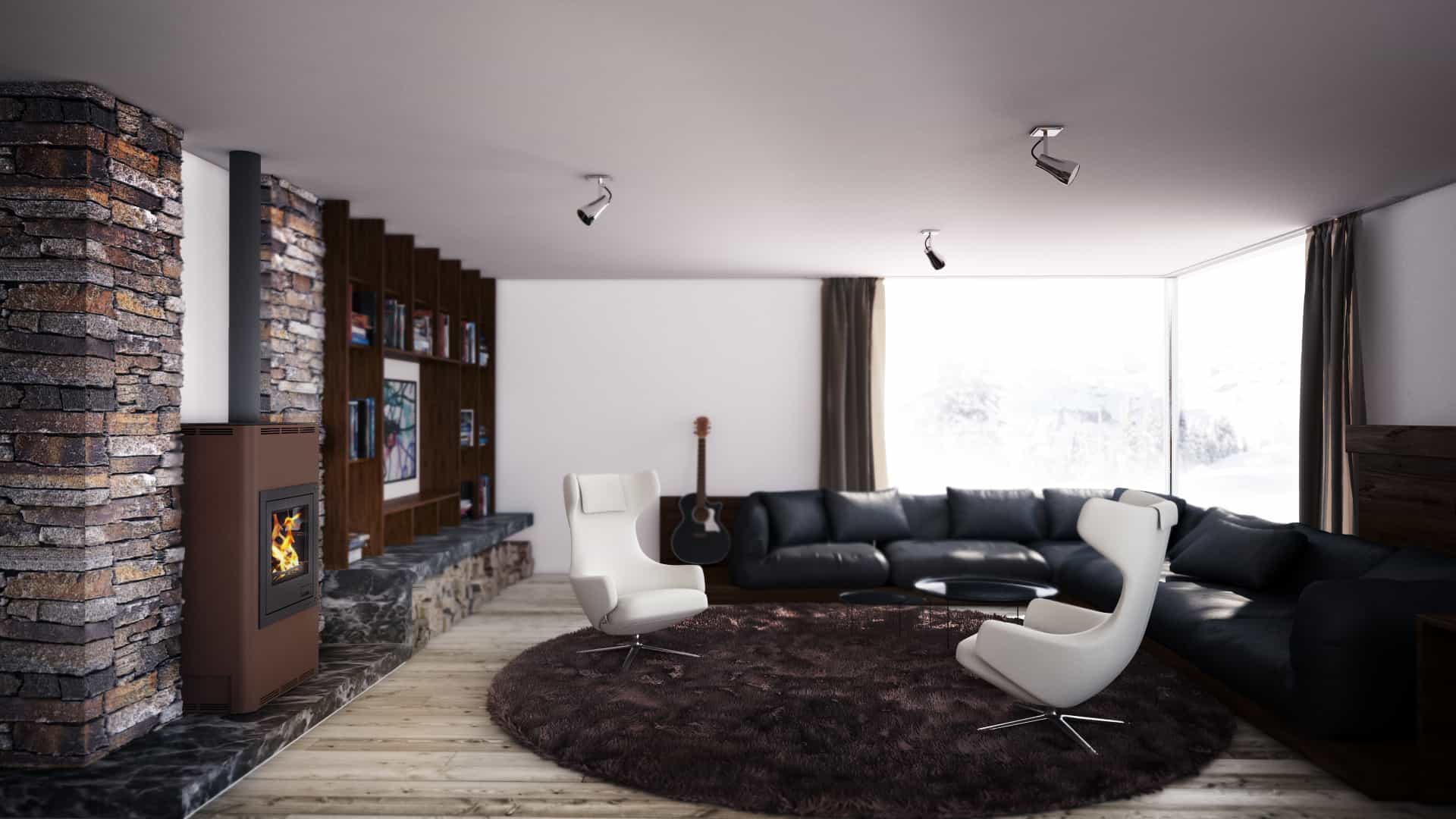

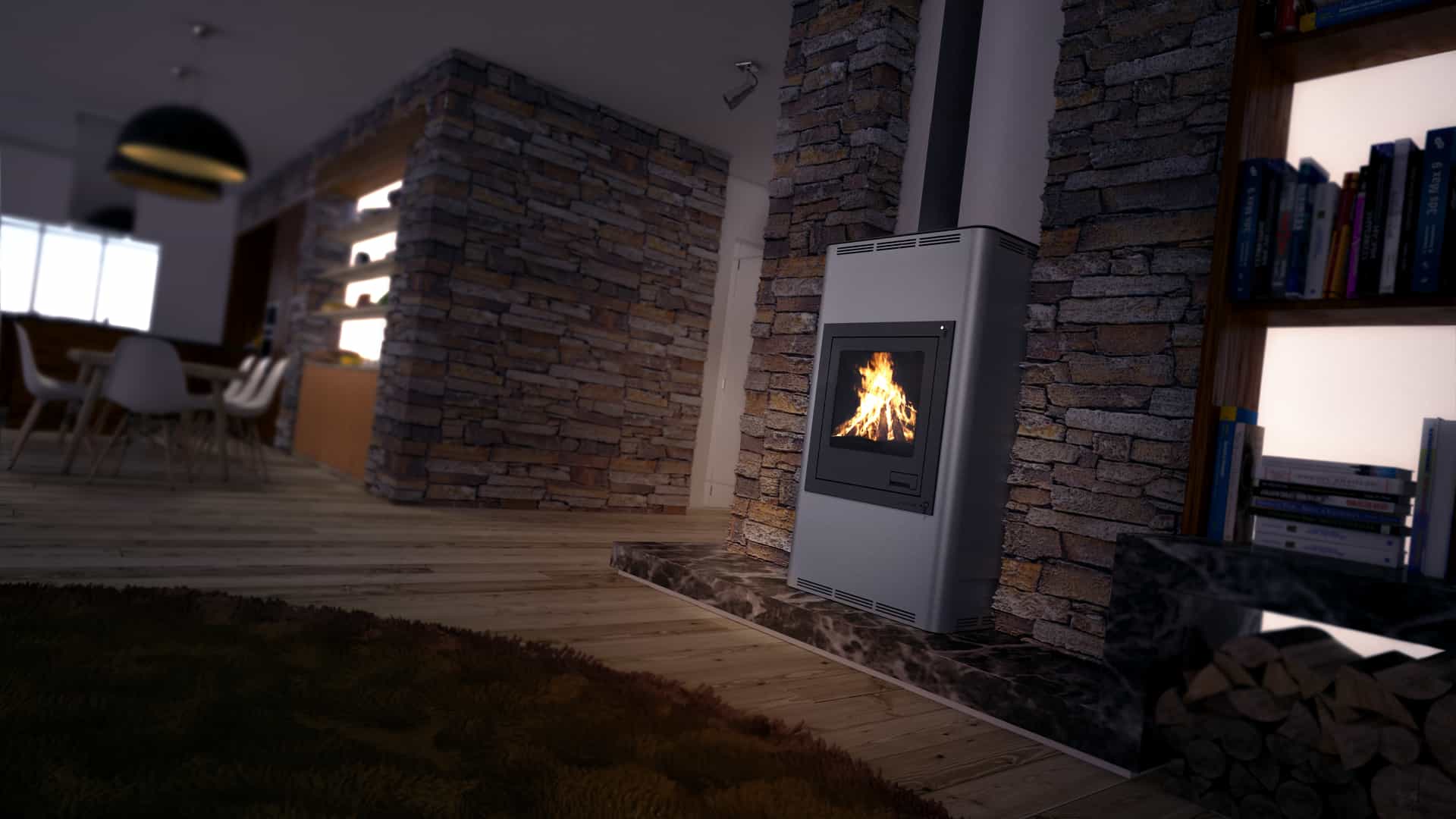

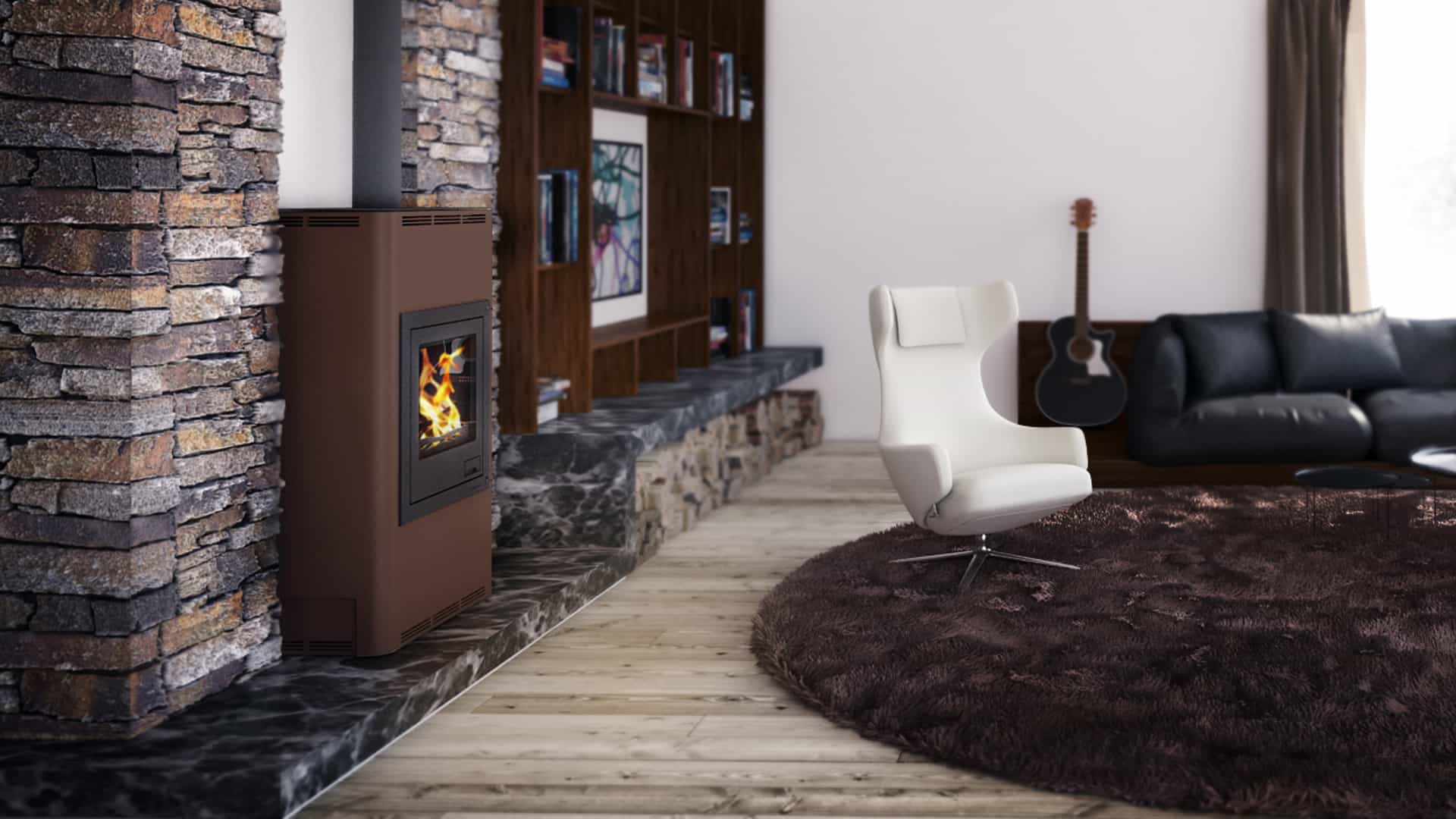

AQUAFLAM IN THE INTERIOR

Play Video

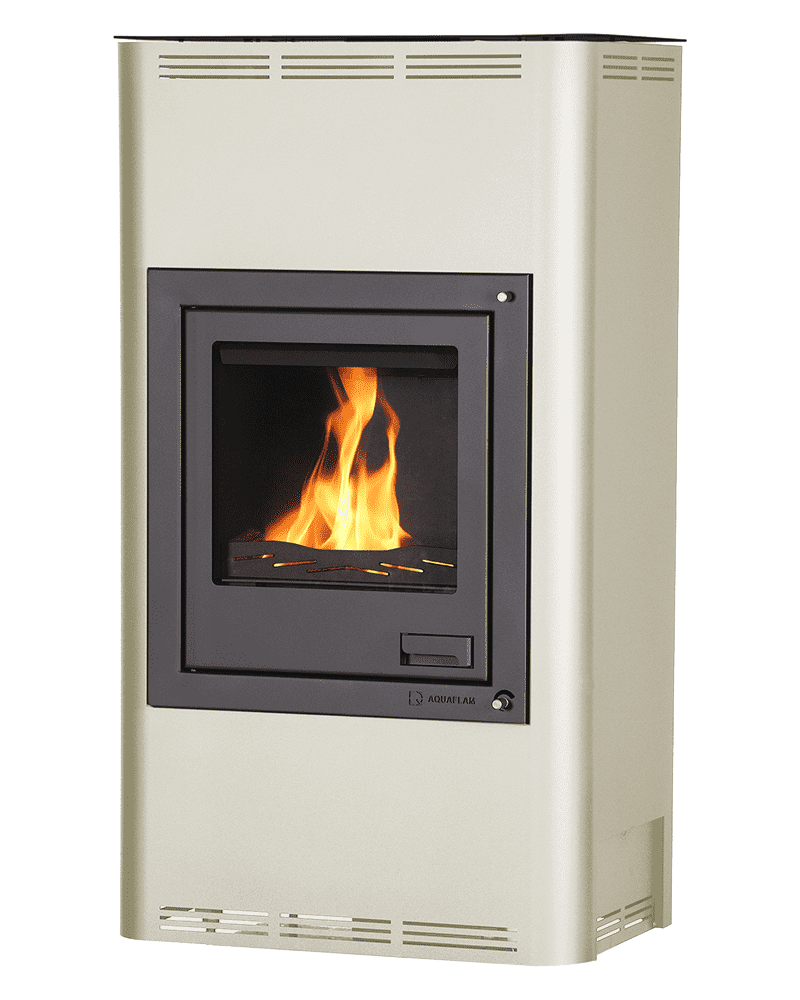

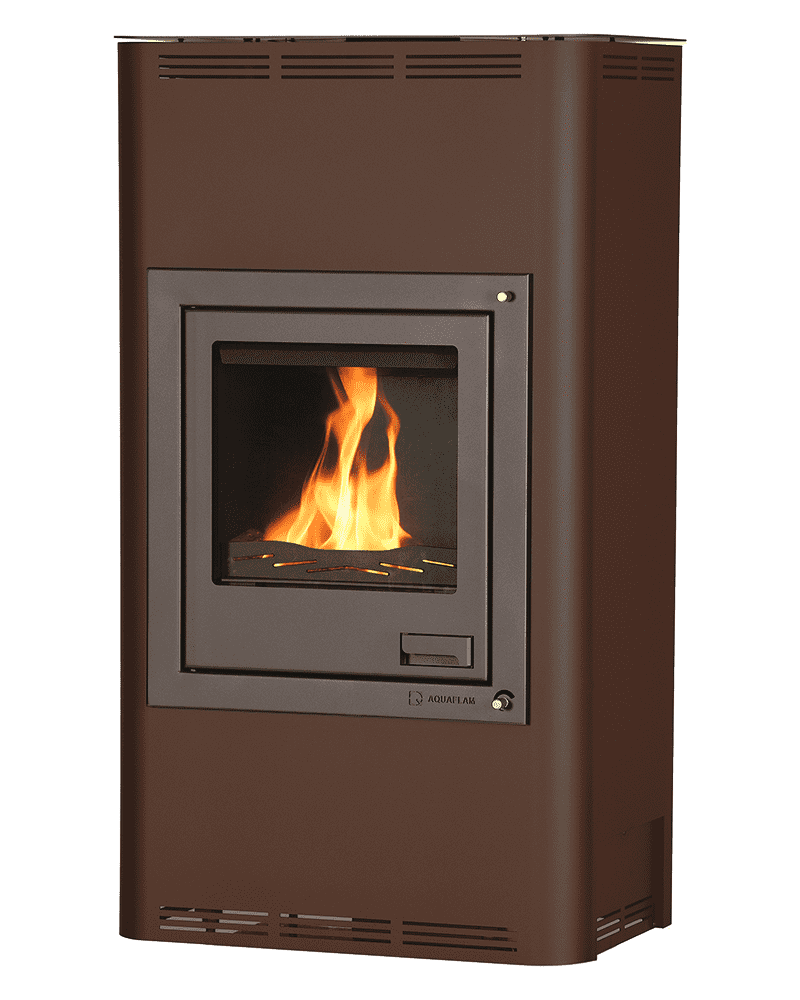

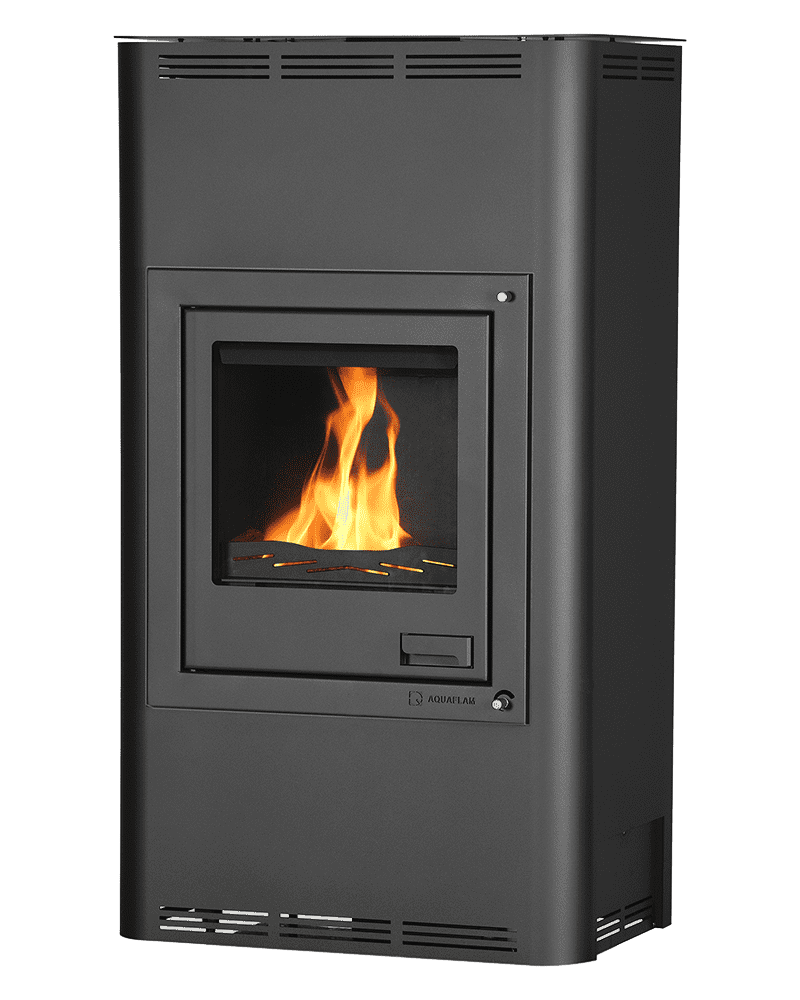

COLOR OPTIONS

Timeless look in four traditional colors

Secondary combustion – ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air / Dual air wash using preheated air / Firebrick-free technology – due to the absence of a firebrick lining, there is a larger surface area for increased water heating efficiency / Cooling Loop – a safety feature against overheating / External air inlet – Eko-Air-In System damper for regulating the chimney draught / Hot and cold water outlets on both sides / Three types of combustion regulation – manual, basic electronic and automated

CROSS SECTION OF THE COMBUSTION CHAMBER

TECHNICAL PARAMETERS

Aquaflam 17
17 kW
Nominal power [kW]
17
Nominal power into water [kW]
14
Nominal power range [kW]
13 – 21
Power into water range [kW]
12 – 16
Stove efficiency [%]
79
Smoke flue diameter [mm]
180
Hmotnost [kg]
207
Log lenght [cm]
45
Heating value [m3/h.]
260–420
CO emissions at 13% O2 [%]
0,1
Average flue gas temperature [°C]
255
Volume of heat exchanger [l]
32
Maximum operating pressure [bar]
2,5
We meet the standards
EN 13240, BlmSchV,
Stufe 2, Ekodesign
Warranty
5 years

Czech Product - Gold medal

Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.

COMBUSTION CONTROL

Combustion Control - Manual

  • operates without electricity
  • controlled using a rod
  • for those who prefer the classic style
  • pull towards you to open the air inlet

Combustion Control - Basic

  • simple to control directly on the insert
  • no connection to the power grid necessary
  • safety sensor that closes the damper in the event of overheating
  • powered by long-life batteries
  • overheating warning sound

Combustion Control - Automated

  • simple user interface
  • graphical display of sensors, pumps and temperatures
  • easy installation and connection
  • control of other heat sources
  • control up to three pumps
  • summer / winter heating modes

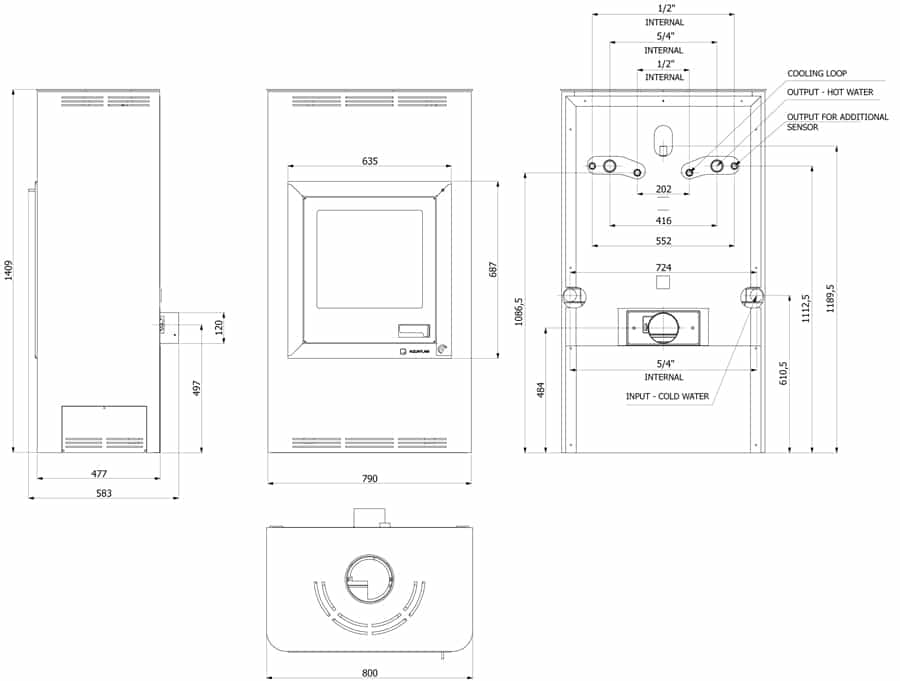

DRAWINGS & DETAILS
