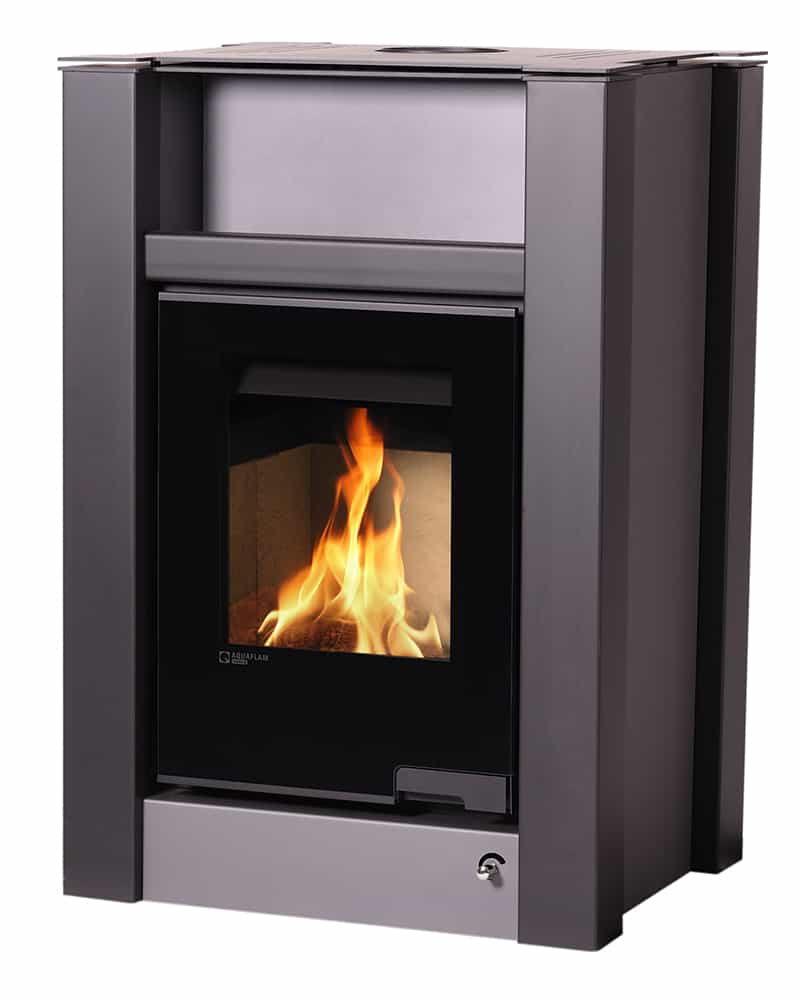

Wood Boiler Stove AQUAFLAM VARIO®

LEND

AQUAFLAM VARIO is the new member to the product range from HS Flamingo s.r.o. A state-of-the-art wood boiler stove that meets the requirements of even the most demanding customers. Highly effective and environmentally friendly. Secondary combustion technology with an efficiency exceeding 80%. A unique solution providing a simple transition from heating using water to heating with hot convection air.

secondary combustion

Ensures a clean glass and perfect combustion of gases thanks to a special inlet for secondary and tertiary air

tertiary air supply

a third air supply for the combustion of gaseous particle

safety cooling loop

A safety feature against overheating

Eko-Air-In - External air inlet

This innovative feature delivers high efficiency, up to a 40% reduction in fuel consumption

gasket cord with a protective layer

it really handles what no other can

Made from the best quality materials, using a technology that meets the strictest European norms. A cooling loop that protects against overheating is included as standard. Tertiary air supply for perfect combustion and a continuous supply of air. There is, of course, an option to connect outside air to the stove. The optional integrated electronic air supply regulation automatically protects against overheating.

You can choose how you will operate your wood stove. Two heat exchanger power outputs and the option to operate the stove in full convection mode is Aquaflam VARIO!

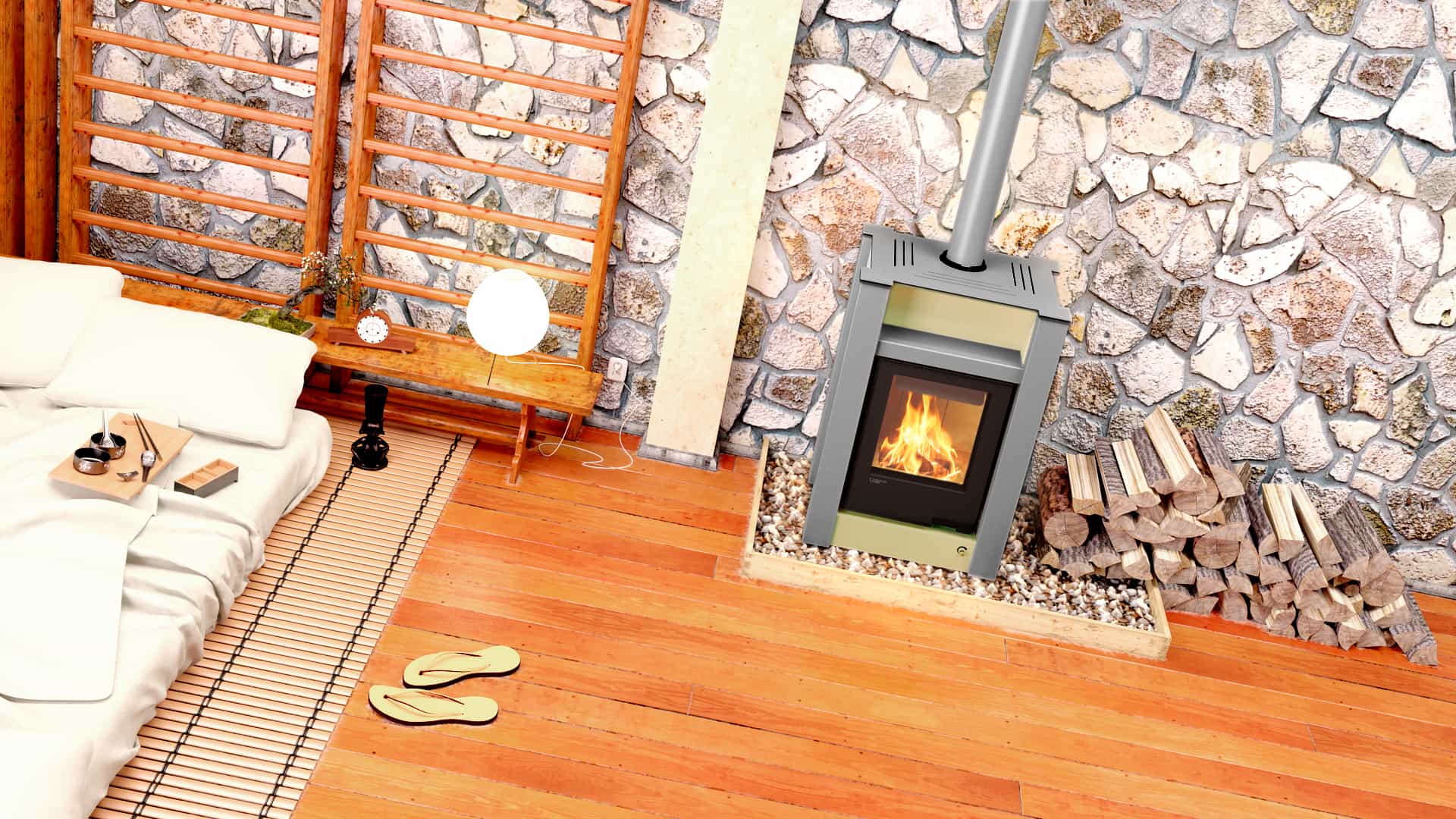

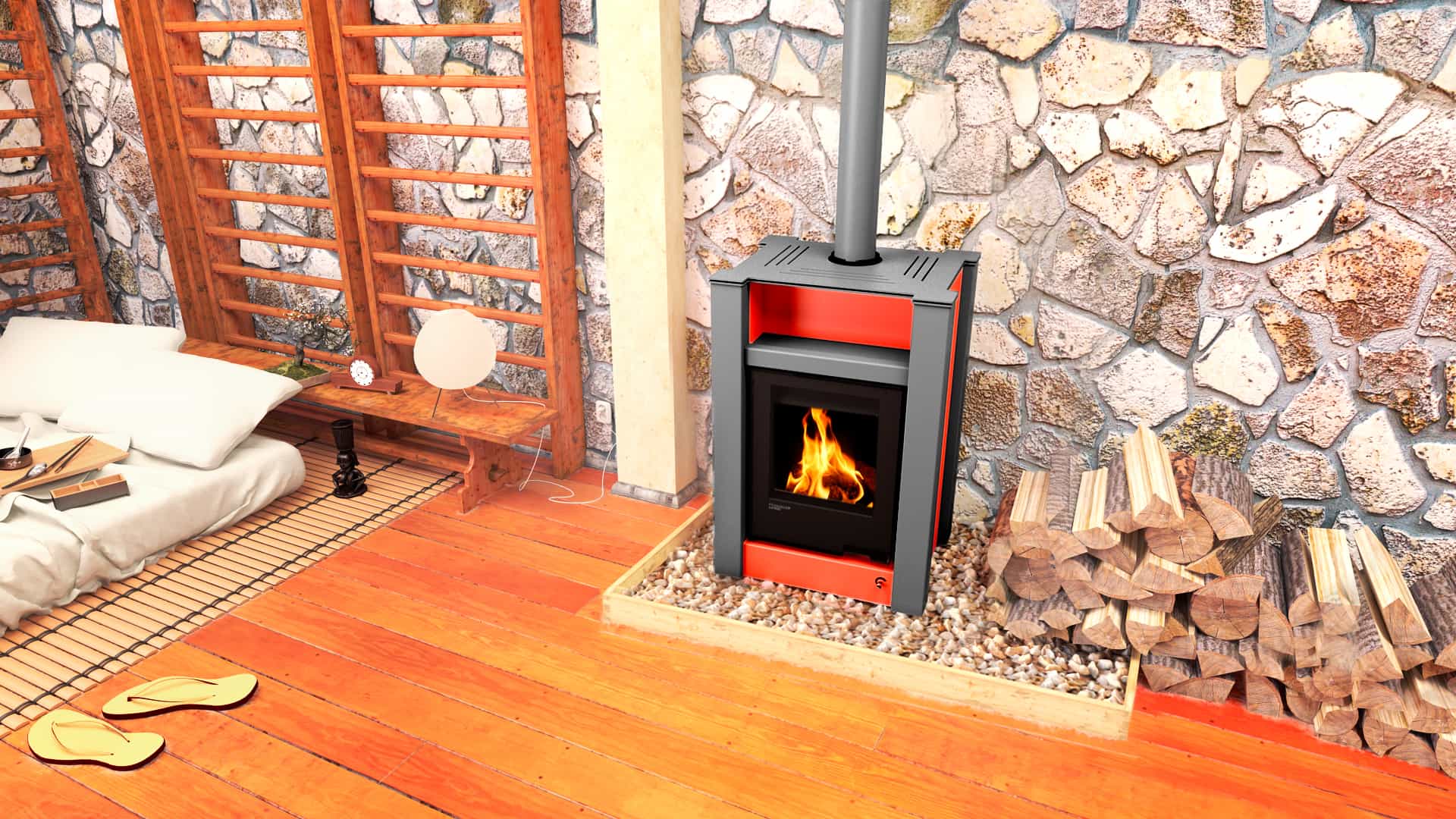

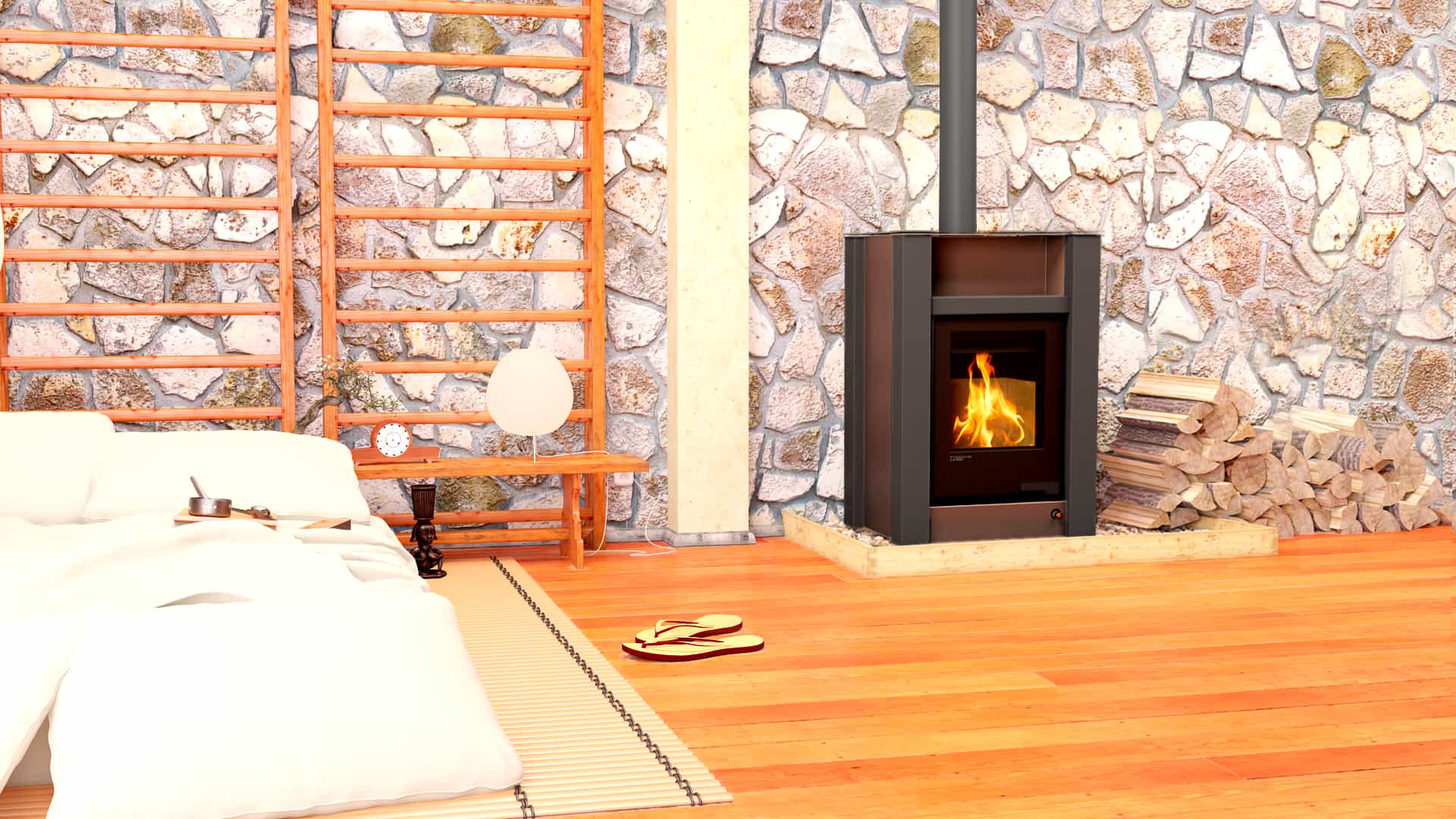

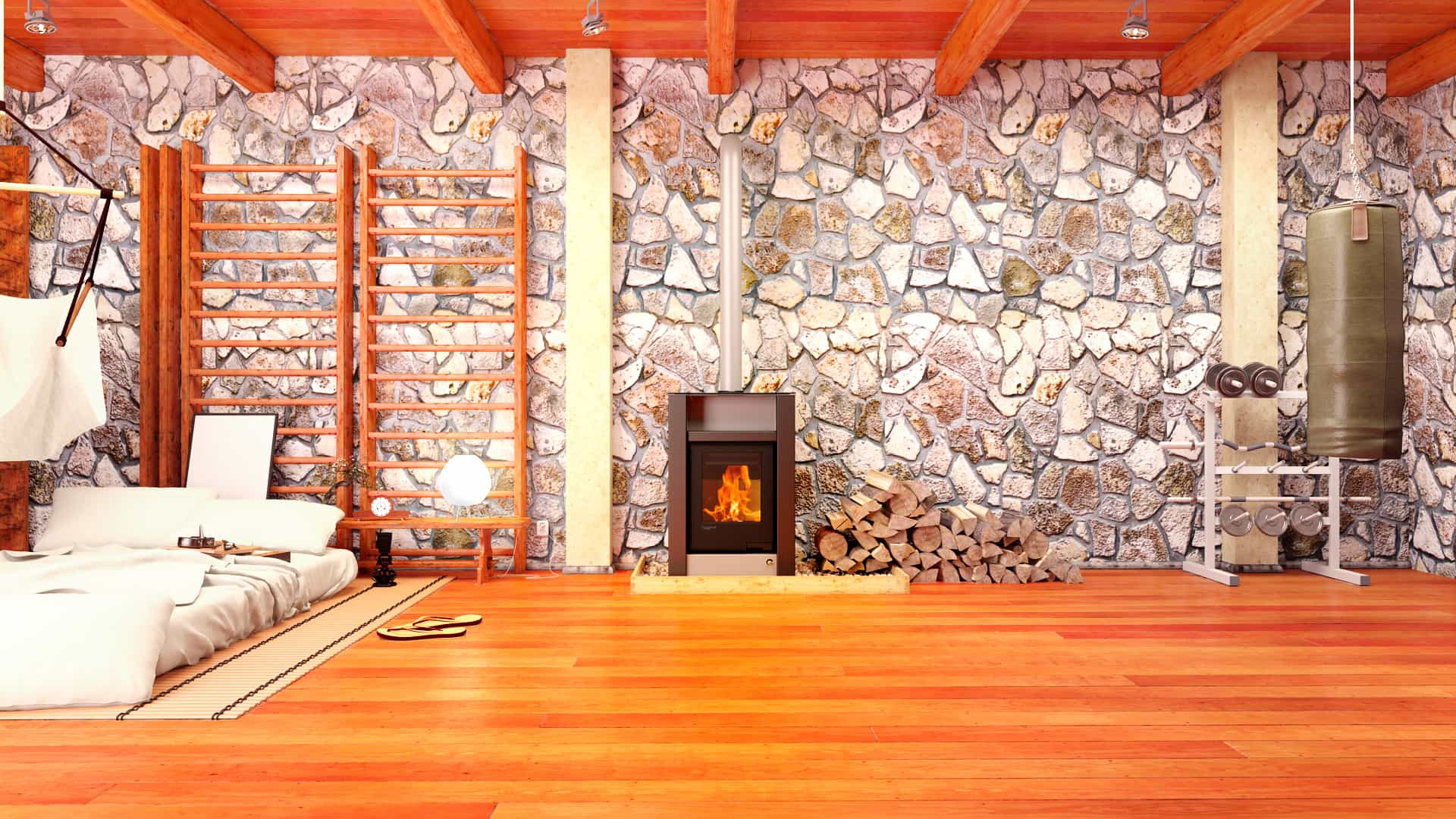

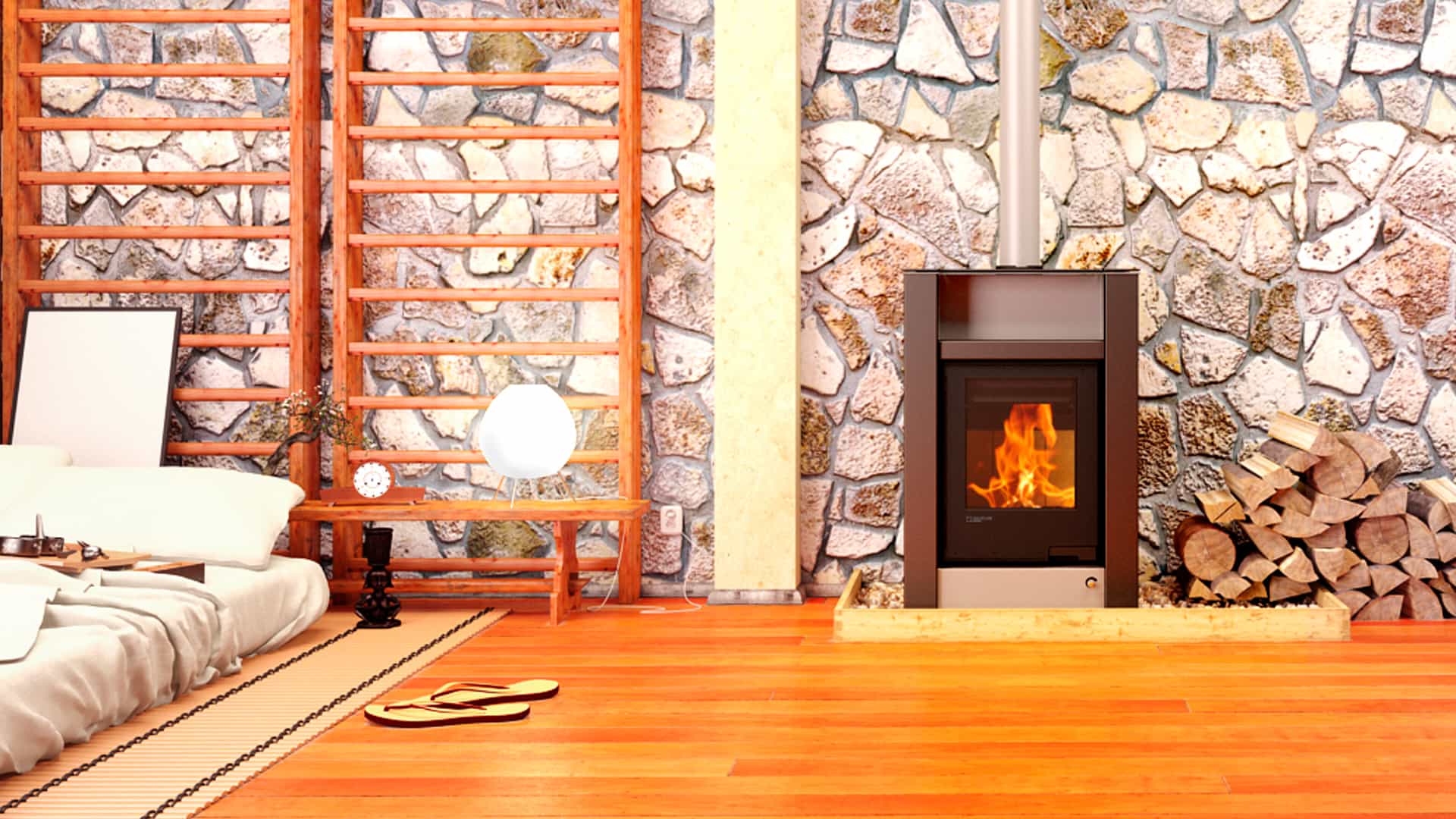

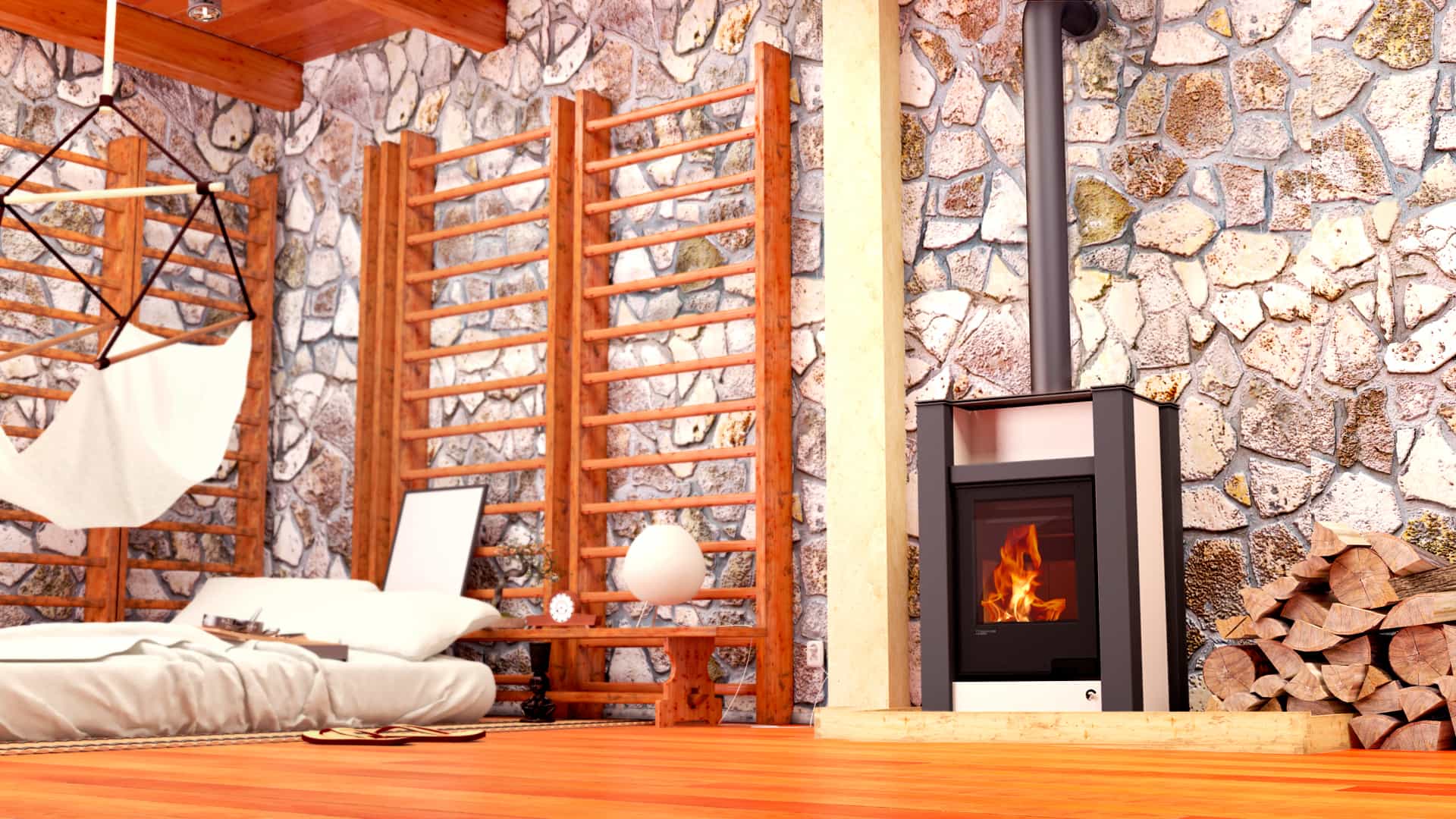

LEND IN THE INTERIOR

Play Video

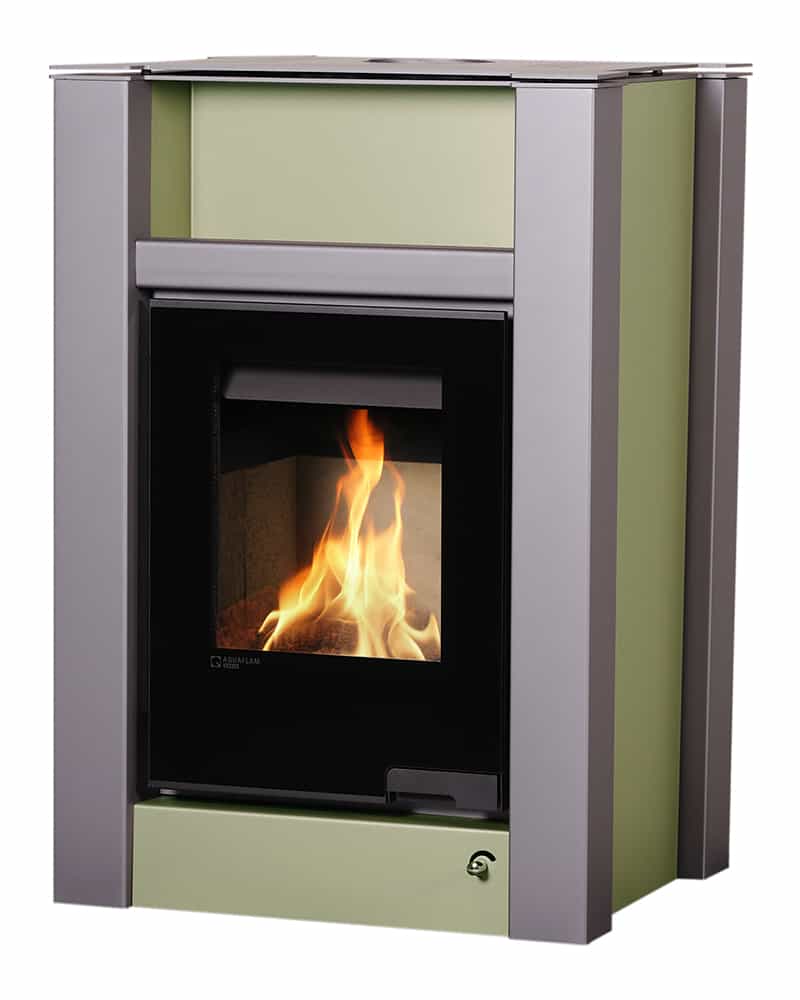

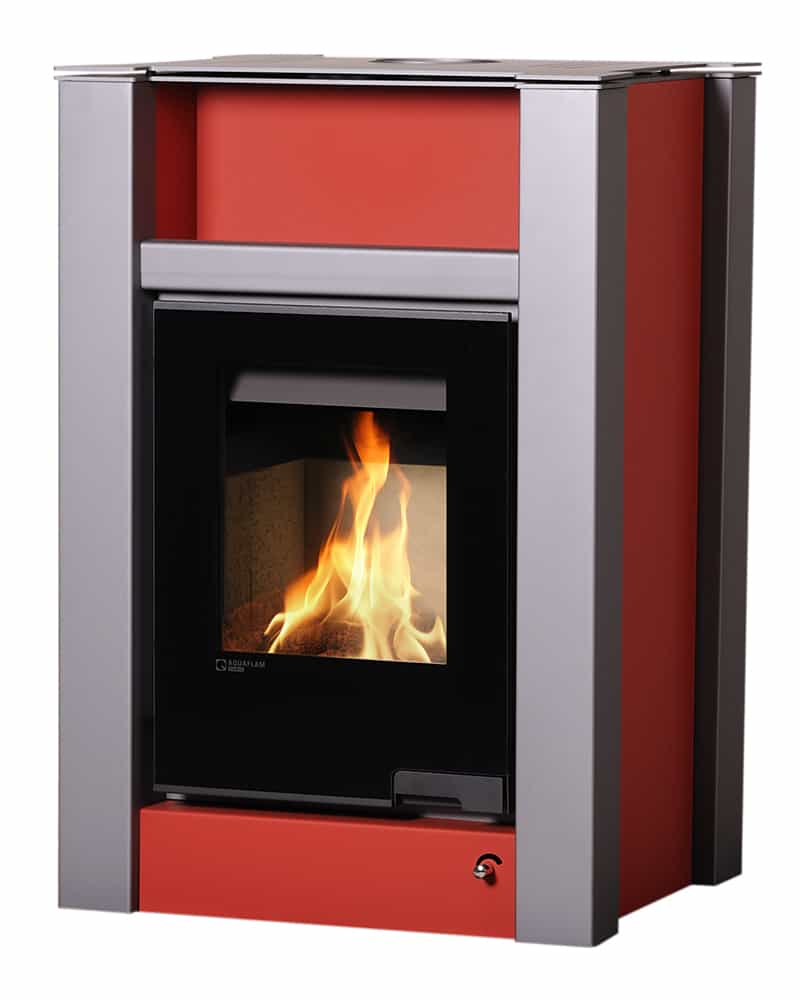

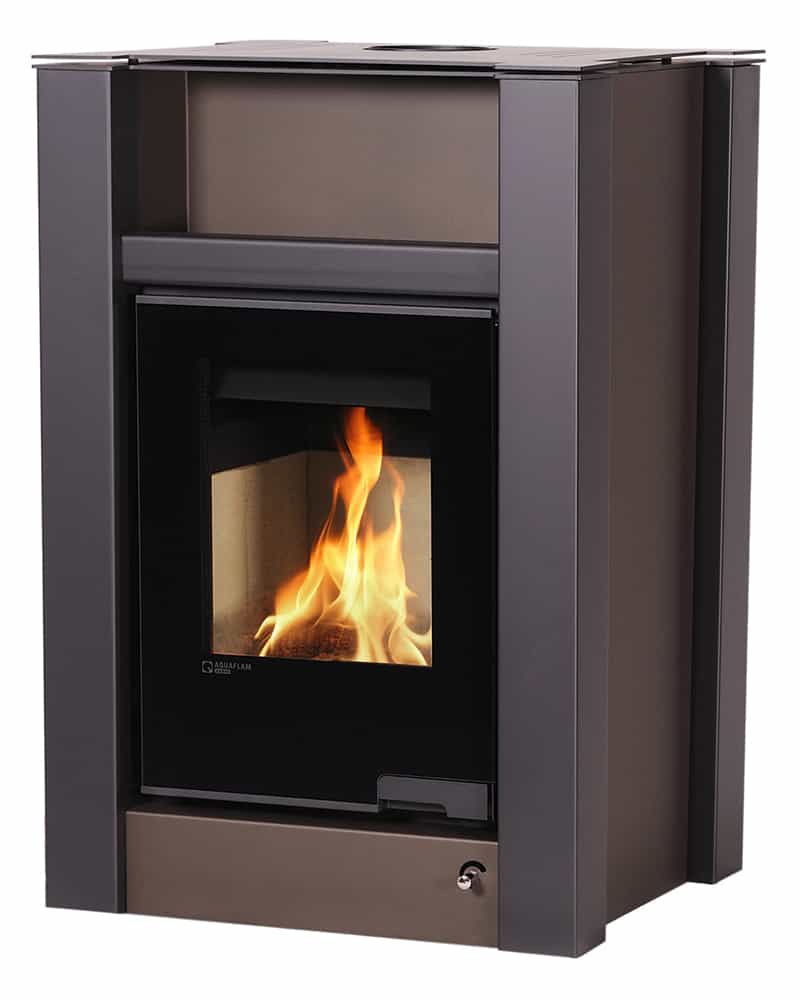

COLOUR OPTIONS

Modern design in five popular colors

Convection wood stove – fast heat transmission method using the circulation of air under the wood stoves outer casing / Quality Czech firebrick – accumulates heat and intensifies the experience provided by the fire / Reliable Three-point locking system / Comes with 5 years warranty

CROSS SECTION OF THE STOVE

TECHNICAL PARAMETERS

Aquaflam VARIO – SAPORO
Air 11 kW / Water 5 kW
Air 11 kW / Water 7 kW
Air 11 kW
Nominal power [kW]
11
11
11
Nominal power into water [kW]
5
7
Nominal power range [kW]
7 – 15
7 – 15
7 – 15
Power into water range [kW]
3 – 9
5 – 11
Fuel consumption [kg]
3,2
3,4
3,0
Stove efficiency [%]
80,22
80,27
80,90
Smoke flue diameter [mm]
150
150
150
Log lenght [cm]
40
40
40
Heating value [m3/h]
140–300
140–300
140–300
CO emissions at 13% O2 [%]
0,096
0,096
0,096
Average flue gas temperature [°C]
273
267
293
Volume of heat exchanger [l]
10,2
8,7
Maximum operating pressure [bar]
2,5
2,5
Standards: EN 13240, BlmSchV – Stufe 2, Ekodesign
Meet
Meet
Meet
Warranty
5 years
5 years
5 years

Czech Product - Gold medal

Our Czech products are sold all over the world. They are exclusively produced by the Czech HS Flamingo team.

COMBUSTION CONTROL

Combustion Control - Manual

  • operates without electricity
  • controlled using a rod
  • for those who prefer the classic style
  • pull towards you to open the air inlet

Combustion Control - Basic

  • simple to control directly on the insert
  • no connection to the power grid necessary
  • safety sensor that closes the damper in the event of overheating
  • powered by long-life batteries
  • overheating warning sound

HOT WATER / HOT AIR VERSIONS

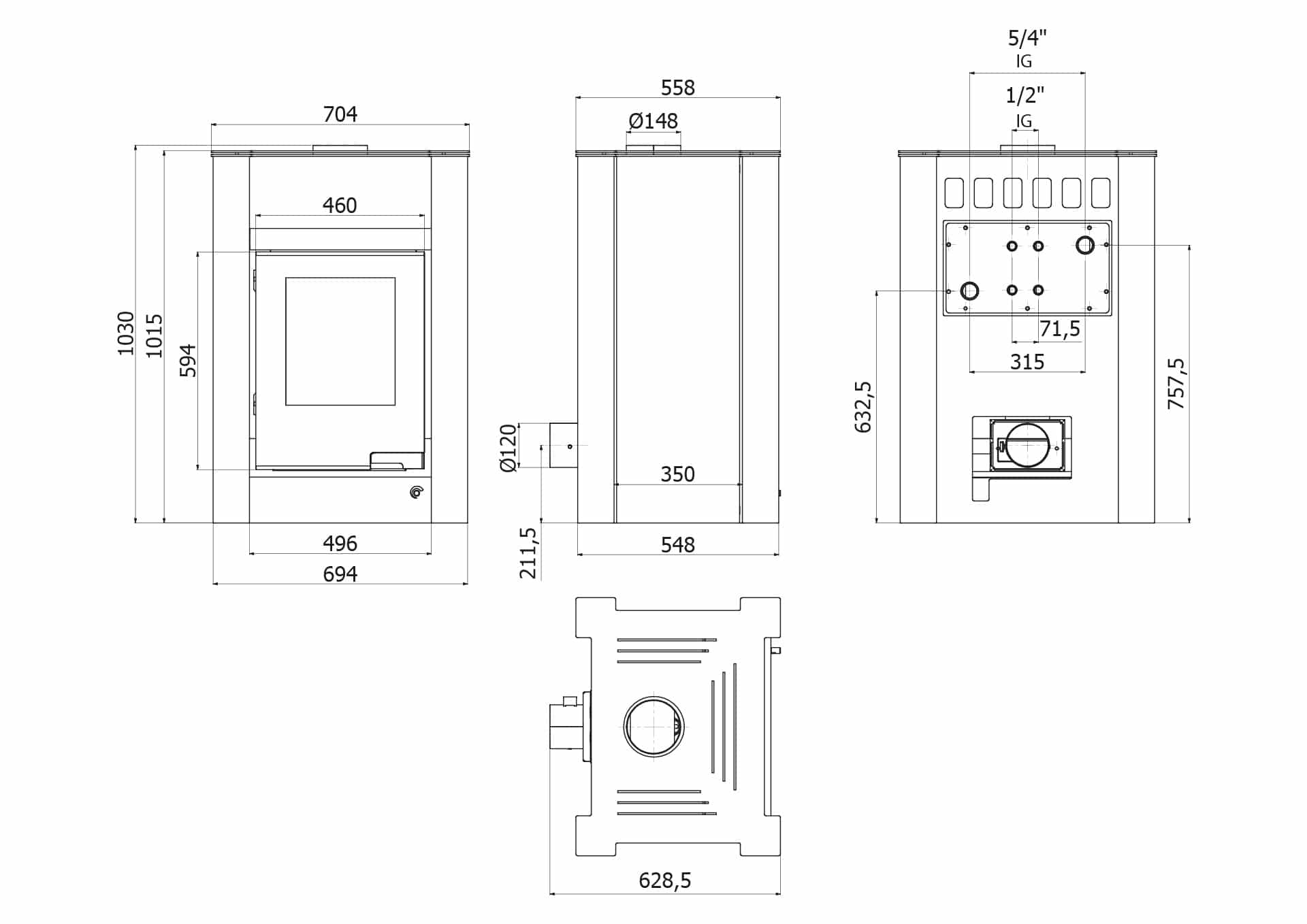

DRAWINGS & PHOTOS
